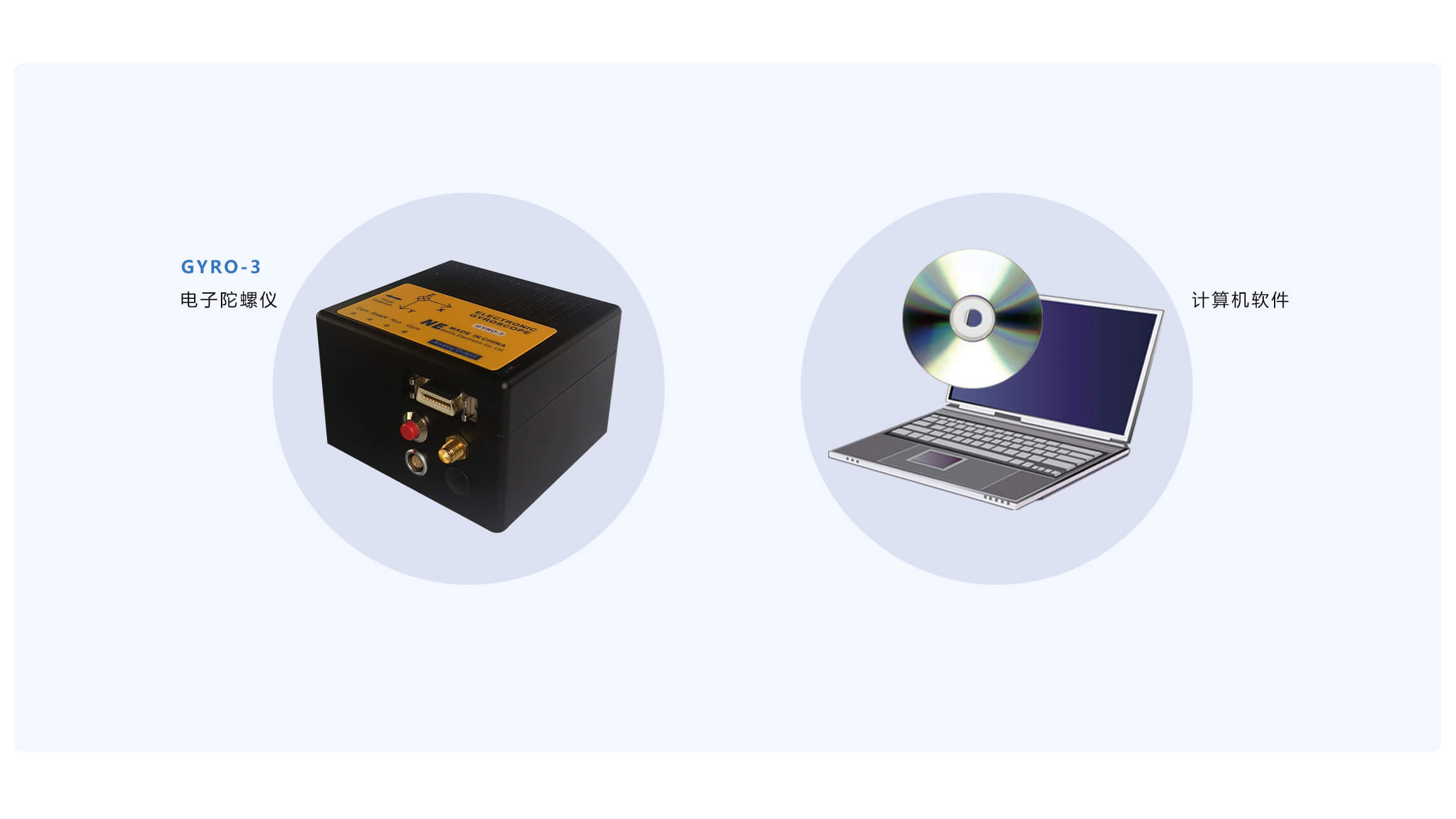

Vehicle body roll angle, pitch angle, lateral acceleration, yaw acceleration and other parameters are important physical quantities describing vehicle behavior. These parameters are particularly important in research tests of active safety equipment and passive safety systems such as body stability control systems. Our company has specially developed a body attitude test system for the field of automobile road test. The VAT-GYRO3 vehicle attitude test system has comprehensive data collection, easy installation of equipment, rich host computer software functions, interface layout and user-friendly operation. It is a body attitude test and improvement. Ideal test equipment for vehicle performance, discovery of potential problems and objective evaluation of vehicle body performance.
●Measurement parameters
Car speed
GNSS data
The acceleration along three orthogonal coordinate axes before and after coordinate transformation
The angular velocity around three orthogonal coordinate axes before and after coordinate conversion
The magnetic field along the three orthogonal coordinate axes before and after the coordinate transformation
Roll angle, pitch angle, heading angle, temperature, air pressure
●Software function
Original data, solution data digital display function
Original data, solution data curve display function
Original data, solution data recording and export function
System working status display and alarm
Gyro parameter design and management function
Gyro Calibration and Calibration
