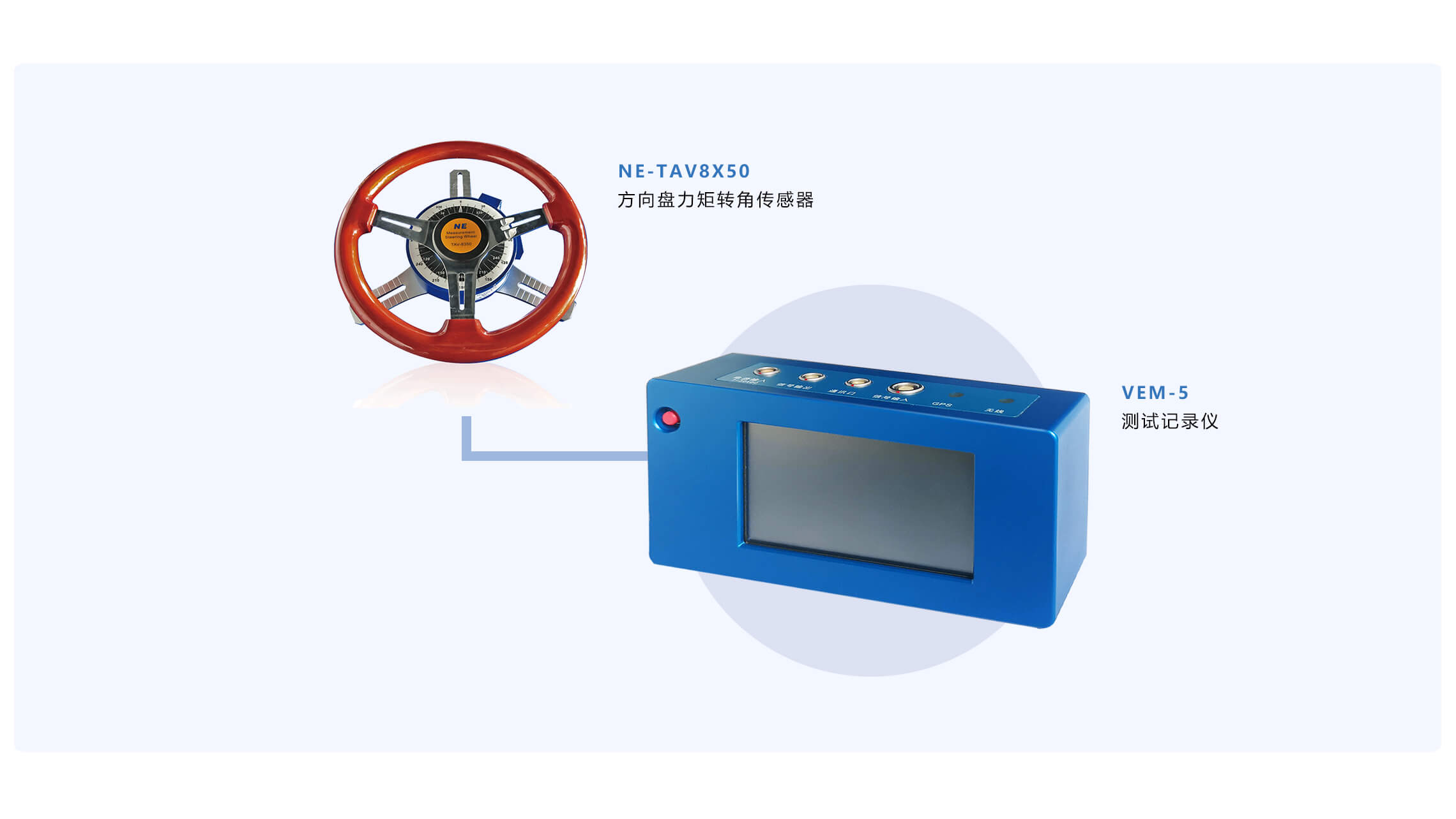

The steering wheel steering force angle detector is also the steering characteristic test. It is an intelligent test system with TAV-8X50 steering wheel torque angle sensor and VEM-5 test recorder as the core. It can complete long-term continuous recording test of steering parameters, waveform display and Data online printing.
Pilot projects
●Auto steering portability test (GBT6323-2014)
●Vehicle steering system torque and angle test
Measurement parameters
●Vehicle speed, time, distance, steering wheel torque, turning angle, angular velocity, etc.
Main feature
●Built-in strain amplifier and precise excitation voltage
●Double pulse signal with anti-shake function
●High-contrast display color scheme is adopted for outdoor use
●The force measurement steering wheel steering force angle detector supports U disk data recording, which is convenient for the use of microcomputer to analyze the data
●The force measurement steering wheel steering angle detector adopts an optimized operation interface, which is simple and convenient to operate, suitable for vehicle applications
●Can be equipped with GPS vehicle speed sensor, and complete vehicle speed and distance measurement at the same time
●Using a rotary encoder to detect the steering angle, no temperature drift, no limit on the number of turns

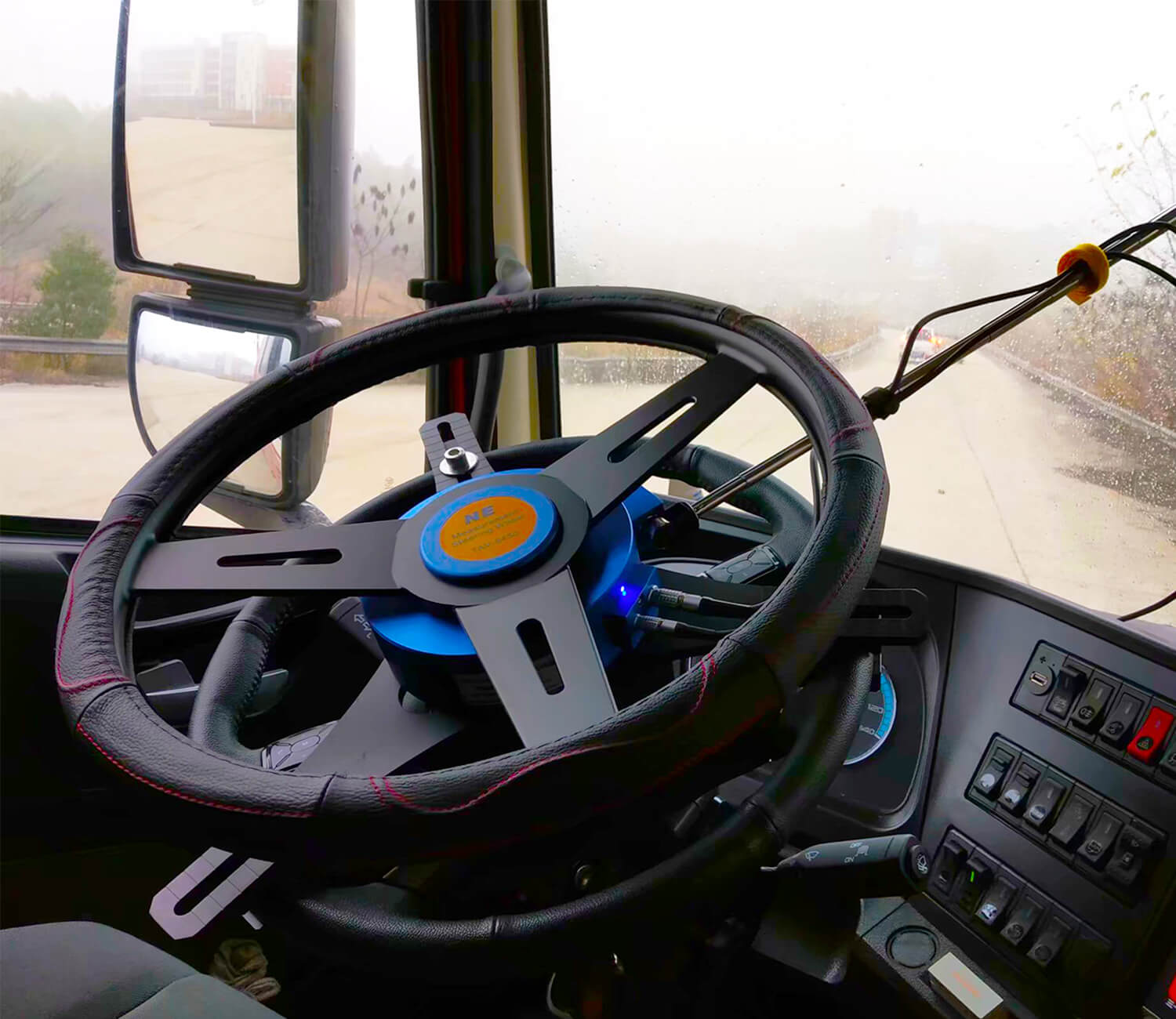

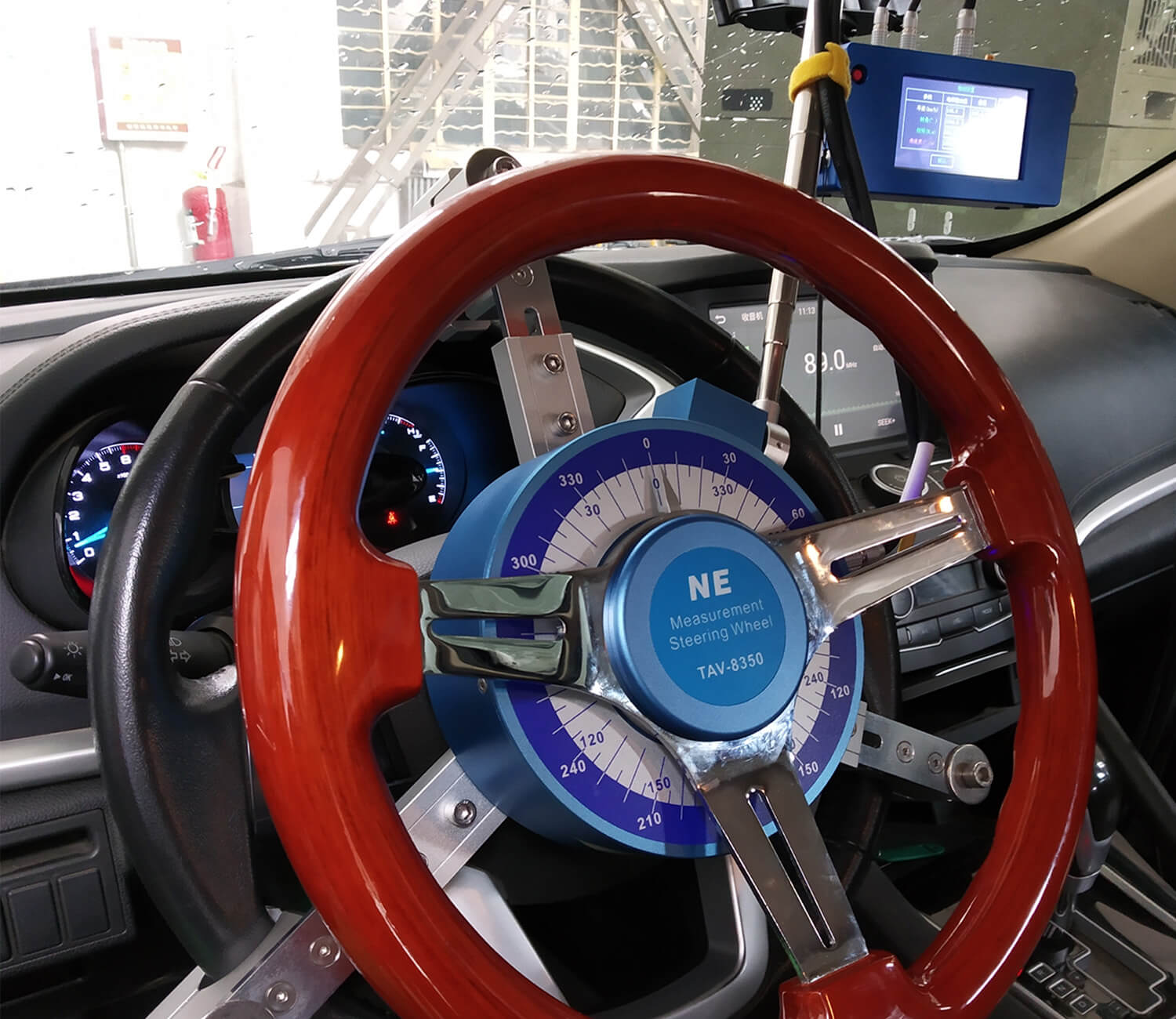

●Spline connection or claw installation (no need to dismantle the original steering wheel)
●Using ARM9 microprocessor, WinCE operating system, supporting data display, recording terminal, touch screen operation, graphic display, convenient operation and high reliability
