NE-RA2G4
|
NE-RA433
|
NE-RA815
|
|
Baseband frequency (Hz)
|
2.4G
|
433M
|
815M
|
|
Communication distance
|
4000 meters (open and wide ground, antenna height 2 meters, baud rate 9600)
|
|
Communication Interface
|
1 channel RS232, the baud rate is 115200 by default (57600, 38400, 19200, 9600, 4800, 2400 can be selected)
1 channel CAN, communication rate 125K, 250K, 500K, 1M can be set
|
|
communication method
|
Half-duplex (2.4G supports point-to-point full-duplex)
|
|

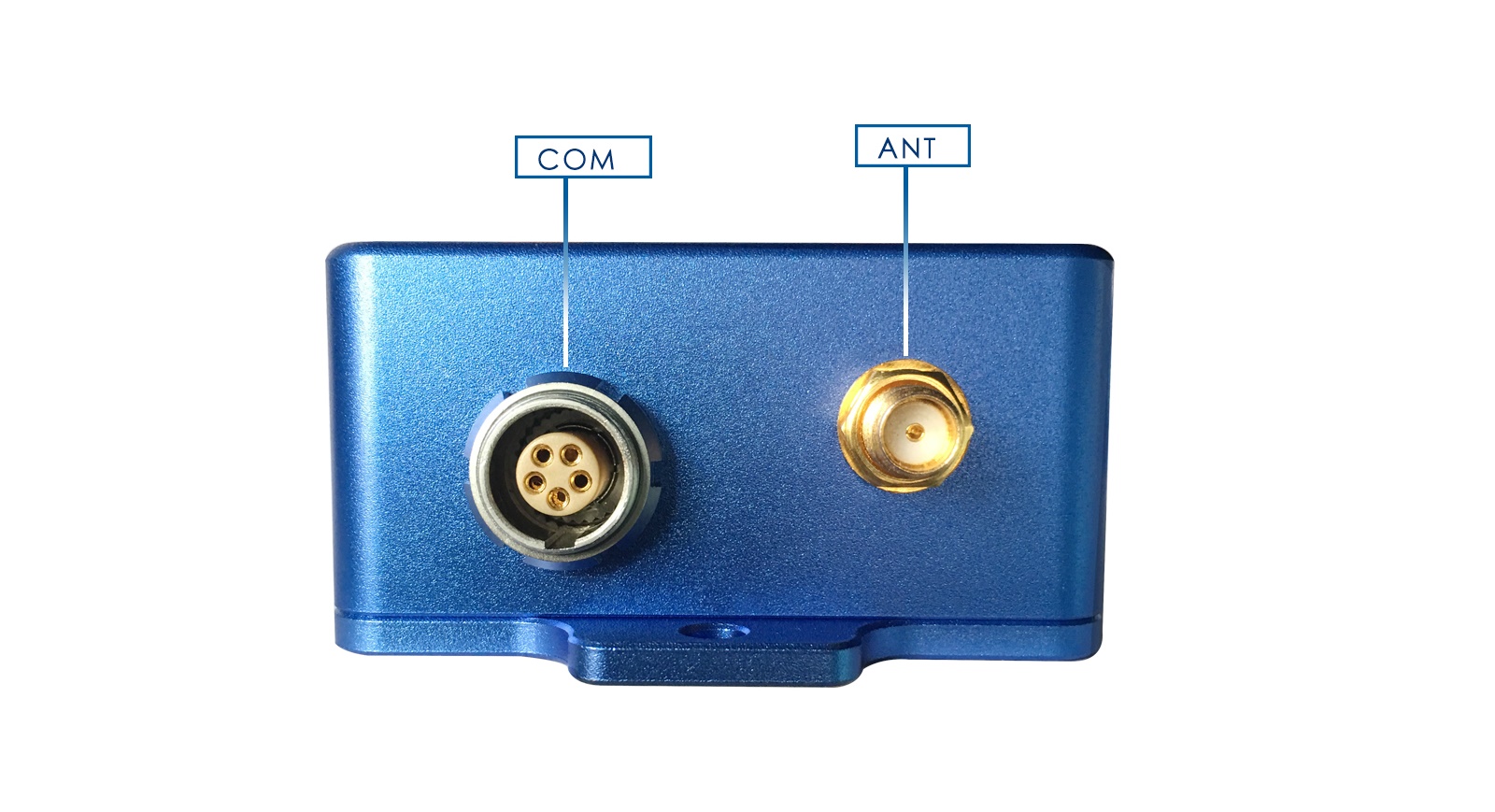

Antenna interface
|
SMA
|
|
Display method
|
0.91 inch OLED
|
|
Status indication
|
3 LEDs (power supply, data transmission, data reception)
|
|
parameter settings
|
Parameters such as address channel and air rate can be set
|
|
Supply voltage
|
12VDC (7-30V wide power supply)
|
|
Power consumption
|
About 2W
|
|
Operating temperature
|
-20~+60℃
|
|
Working humidity
|
10~90%RH (no condensation)
|
|
Storage temperature
|
-30~+70℃
|
|
Dimensions (LWH)
|
110mmx58mmx30mm
|
|
Installation size
|
2 M4, 102mm center distance
|
|
Weight
|
About 180g
|
