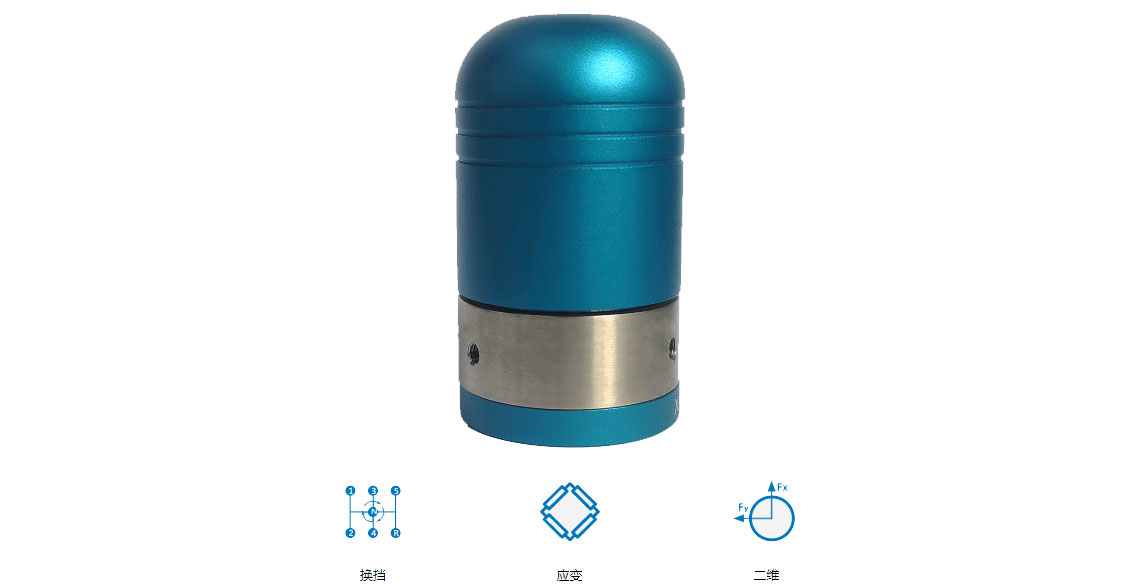

Moderate shifting force and smooth shifting process are related to shifting manipulation experience and will affect the quality of the car. In order to quantify the driver's application on the shifting ball head during the shifting process The force NE has specially developed NE-SF2/500 shift force sensor, which can test the lateral force and longitudinal force exerted on the shift ball head during the shift process. The surface adopts ergonomic pit anti-skid design to ensure a good grip feeling. The adapter screw sleeve can be replaced according to different models. It has strong versatility, easy installation, and adapts to mainstream shift lever head threads.
|
|
NE-SF2/500
|
|
Range
|
500N
|
|
Comprehensive accuracy
|
±0.2%FS
|
|
XY sympathetic error
|
≤±0.5% FS
|
|
Zero temperature coefficient
|
±0.1% FS /10℃
|
|
Output temperature coefficient
|
±0.1% FS /10℃
|
|
Non-linear error
|
±0.1% FS
|
|
Hysteresis error
|
±0.1% FS
|
|
Temperature compensation range
|
-20～50℃
|
|
Creep and creep recovery
|
±0.1% FS
|
|
Insulation resistance
|
5000MΩ
|
|
Operating temperature
|
-20～70℃
|
|
Storage temperature
|
-40～85℃
|
|
Safety overload
|
120%
|
