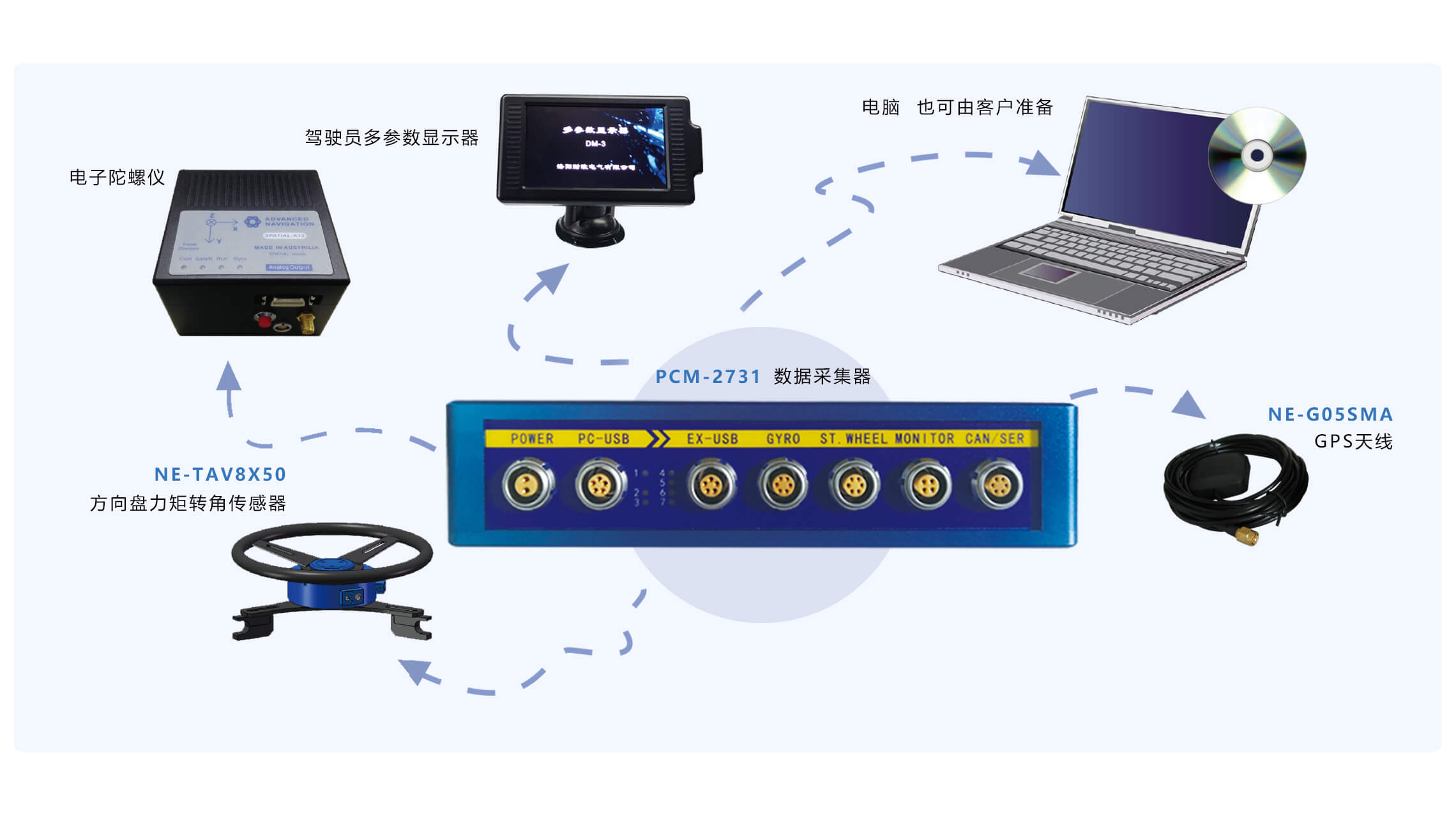

The automobile handling stability test system is composed of portable microcomputer, data collector, sensor and special test and analysis software. It can complete the data collection and analysis of 7 tests stipulated by the new national standard and 1 test stipulated by the Ministry of Transport standard.
Measurement parameters
Vehicle speed, time, steering torque of steering wheel, steering angle of steering wheel, steering angle speed of steering wheel, vehicle three-axis acceleration, vehicle three-axis angular velocity, vehicle roll angle/pitch angle/heading angle/sideslip angle.
Main feature
Full Chinese operation: clear interface, high-contrast color matching
Efficient data management: automatic classification management of test data, support for automatic generation of test reports
Good versatility: adopt the working mode of data acquisition host + notebook computer + driver multi-parameter display
Meet the new national standards and the standards of the Ministry of Transport: suitable for China's automobile testing industry
The test operation is convenient: fully consider the working conditions of vehicle vibration, one-button operation, support voice prompt function
Operation stability optional software
Pilot projects

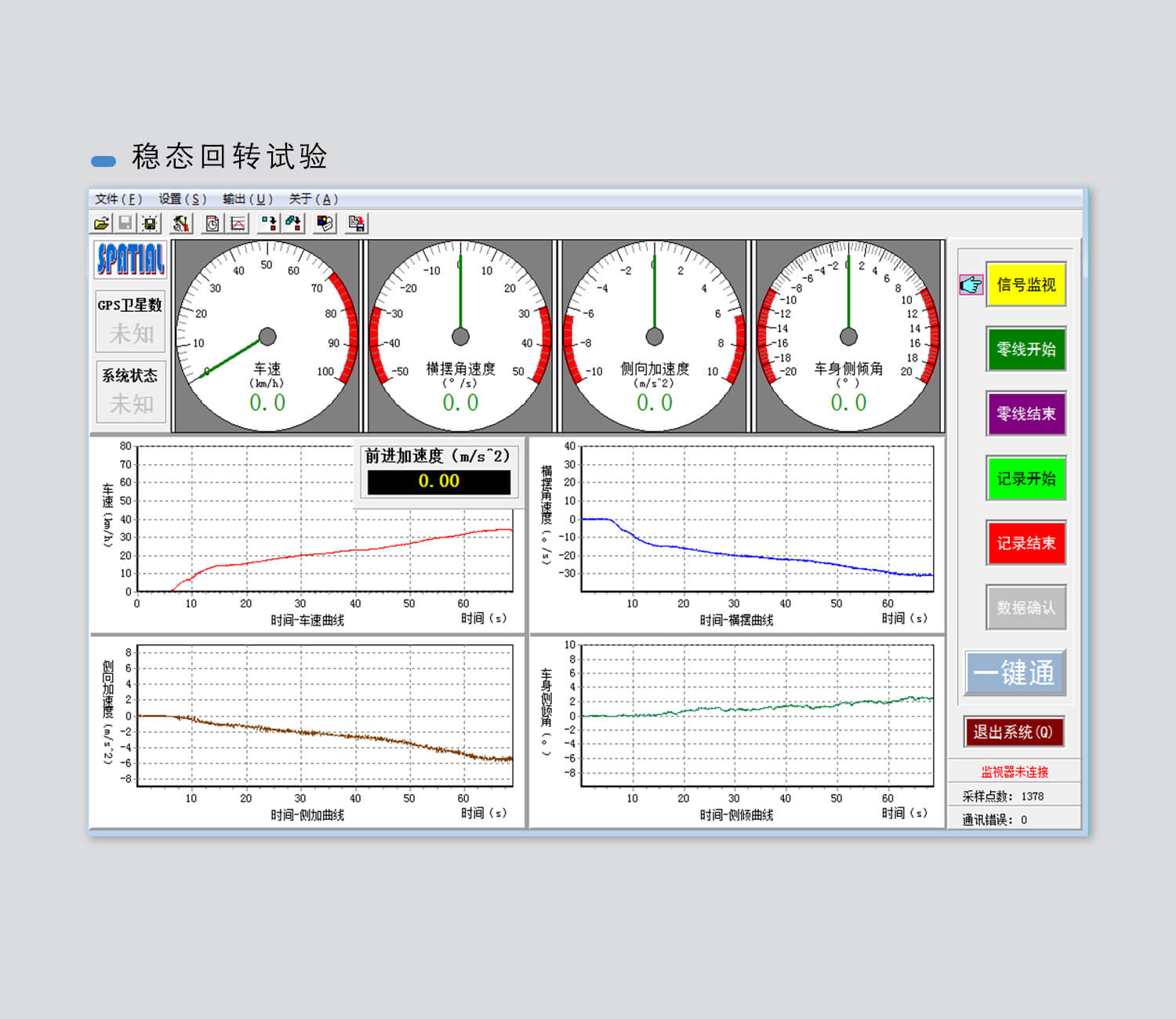

Steady state rotation test GB/T6323-2014

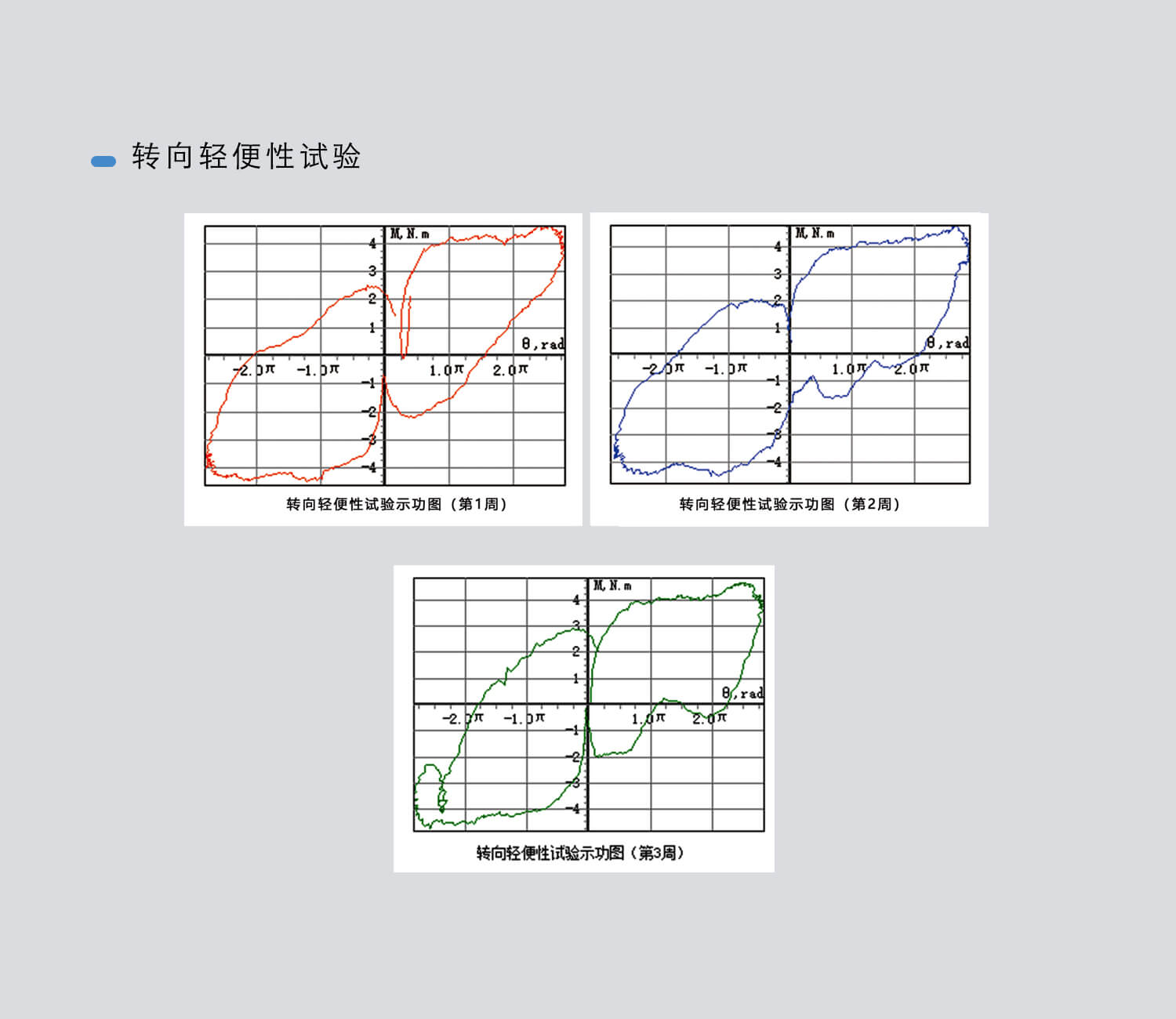

Steering portability test GB/T6323-2014

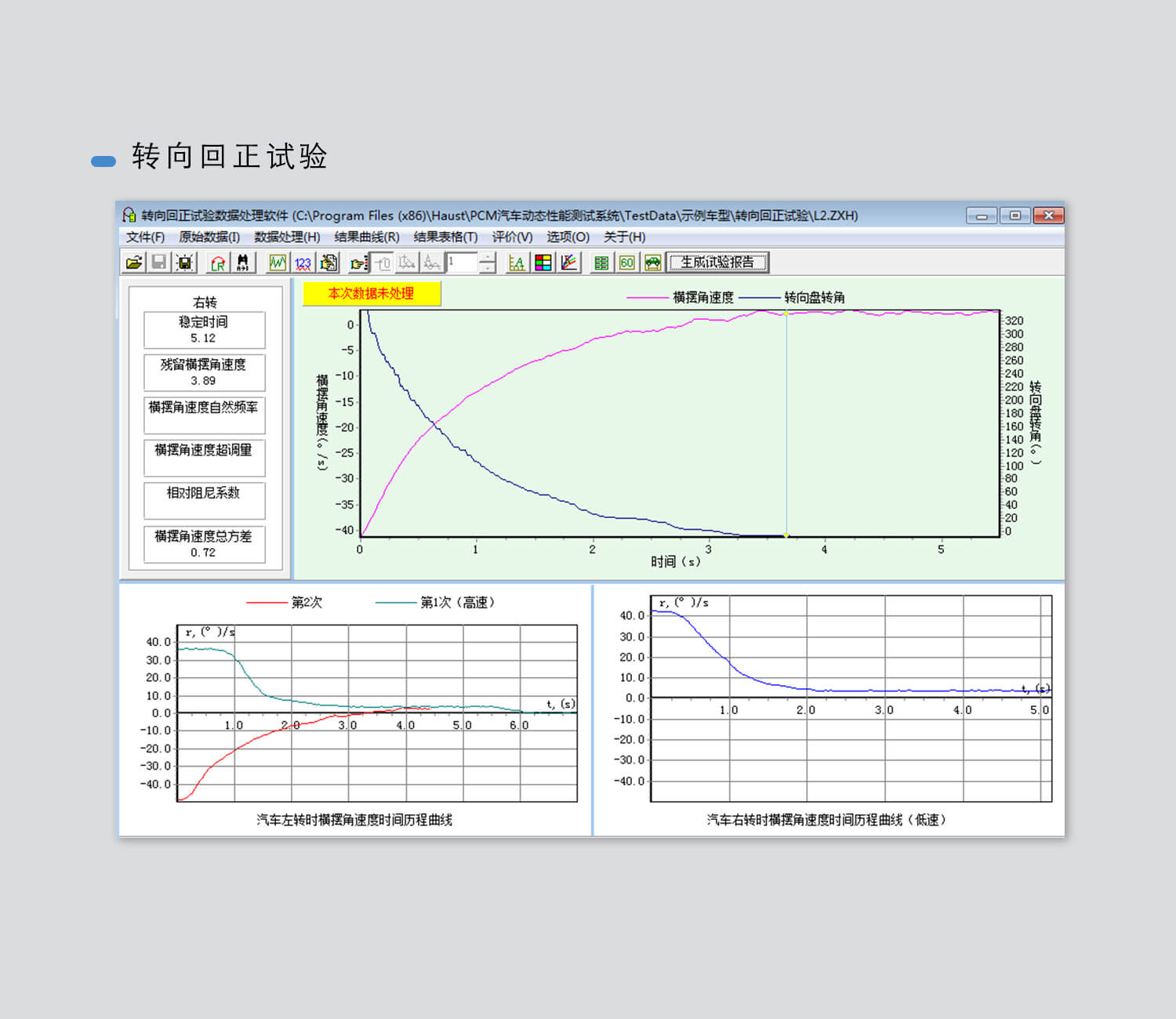

Steering back to the right test GB/T6323-2014

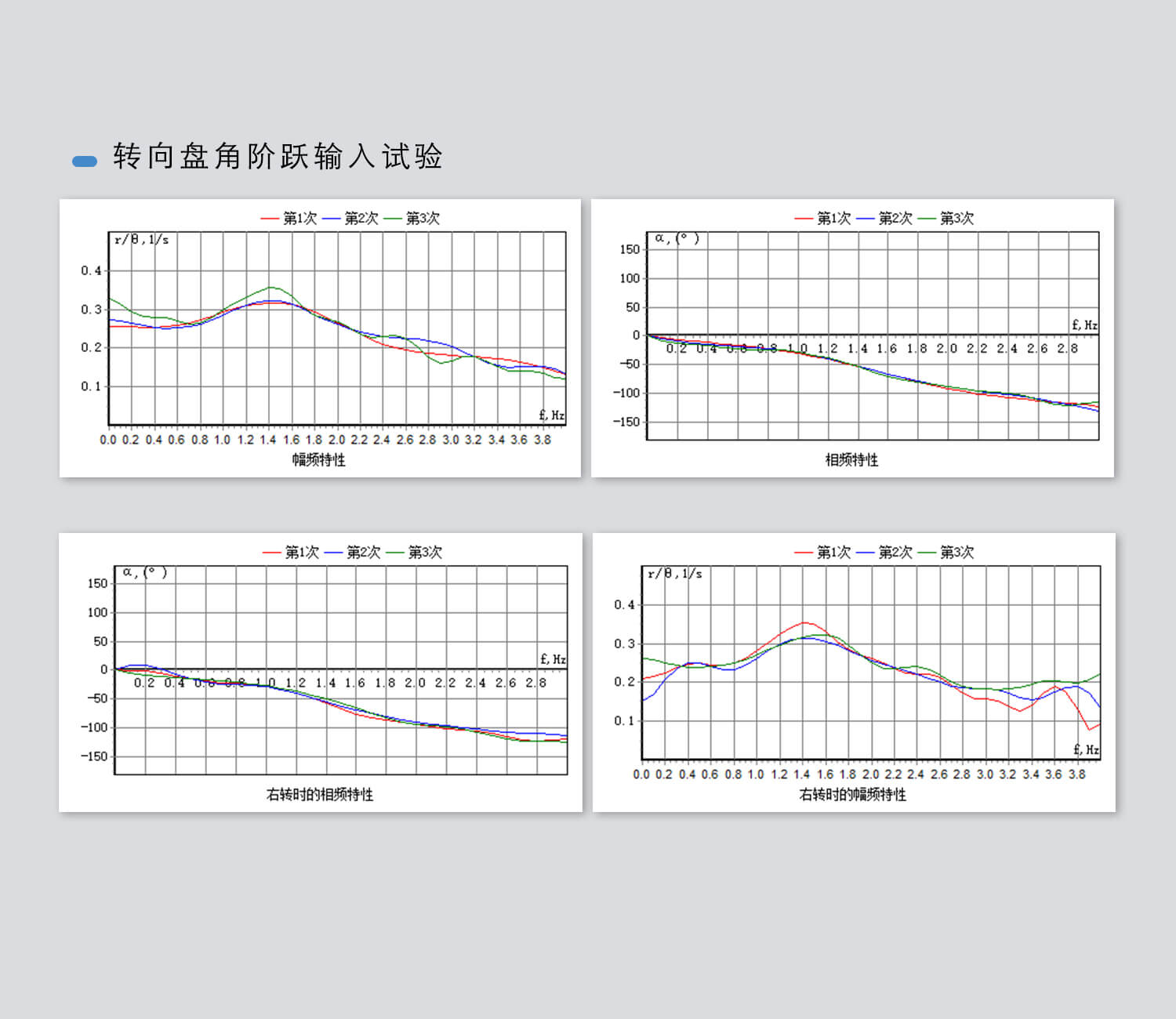

Steering wheel angle step input test GB/T6323-2014
Steering wheel angle pulse input test GB/T6323-2014

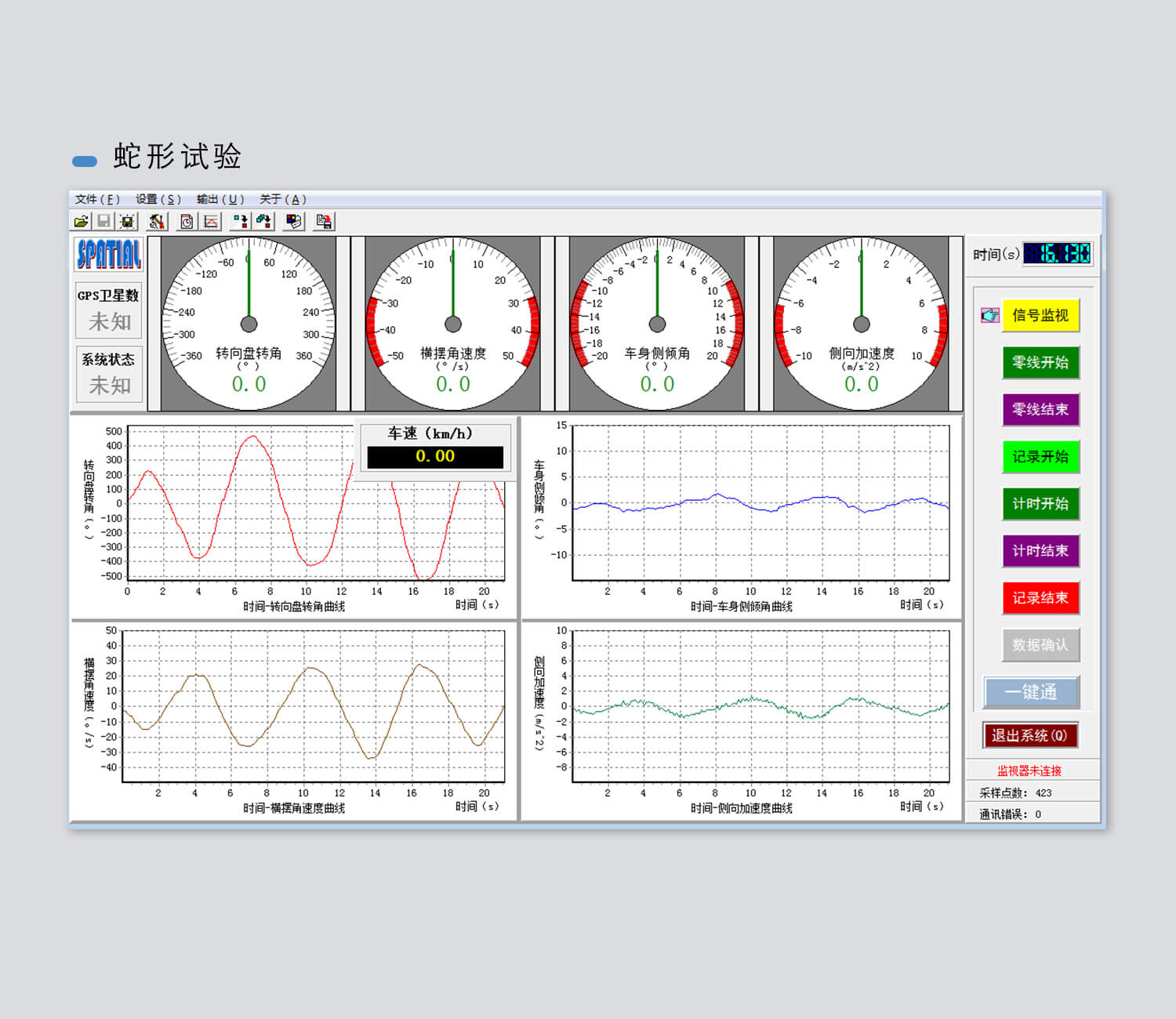

Snake test GB/T6323-2014

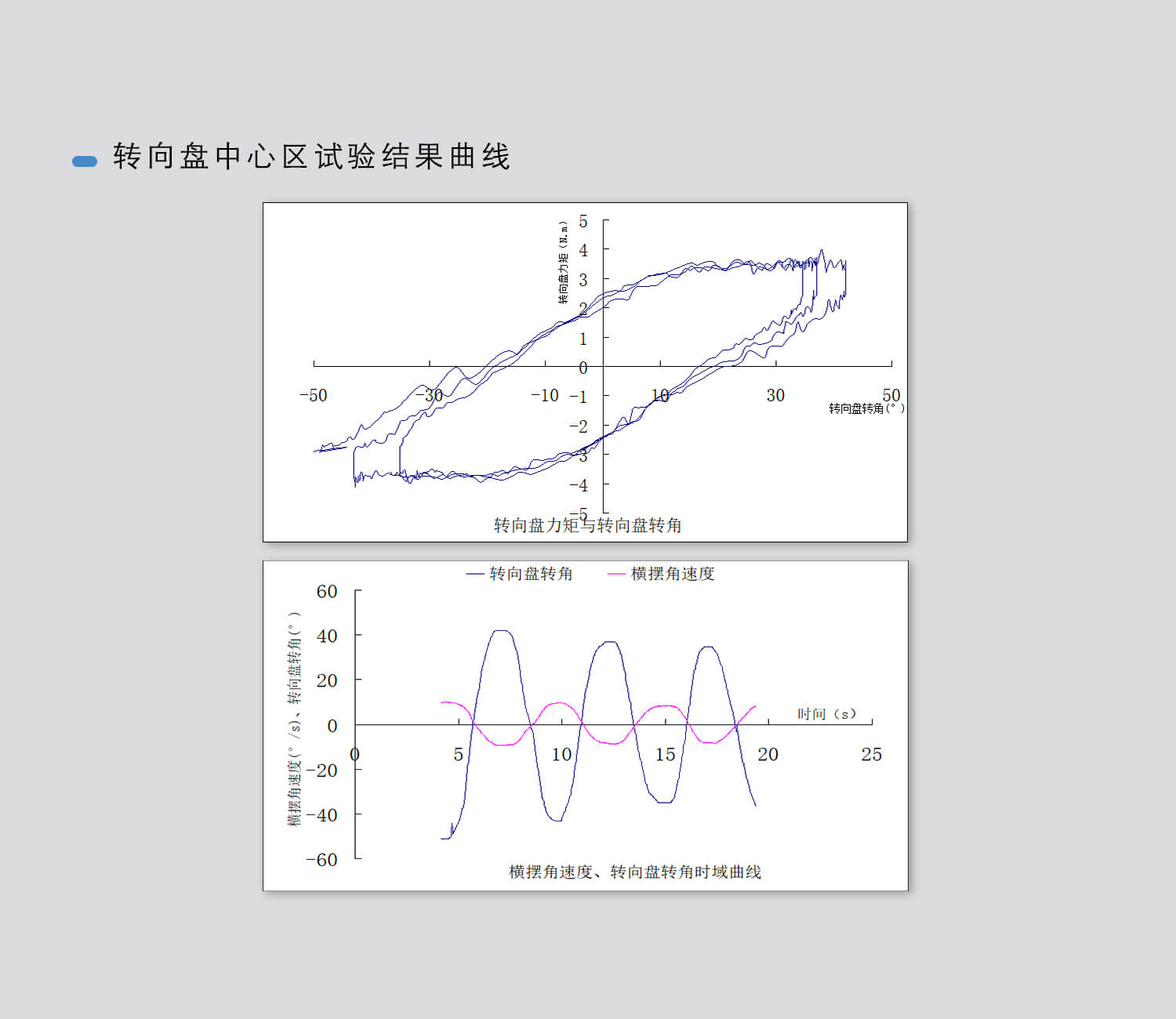

Steering wheel center area test GB/T6323-2014
ISO 13674-1-2010
Steady state circle test JTT 884-2014
