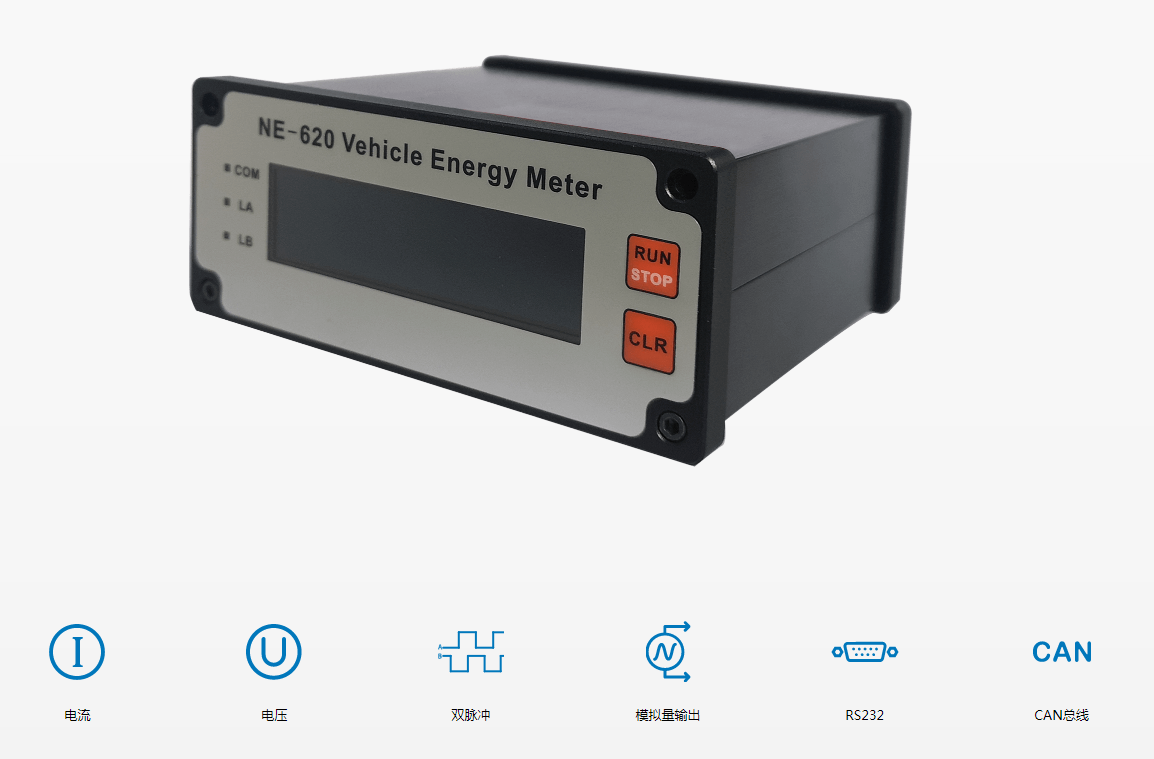

In the new energy electric vehicle power battery and motor development and testing stage, it is necessary to detect the current and voltage changes of the energy feedback of the motor and the energy output of the power battery in real time. Naiou Electric has specially developed a data collector with a high-performance microprocessor as the core that can collect single-channel voltage, current, instantaneous power and electric energy consumption. The electric consumption meter is easy to operate, rich in communication interfaces, and supports analog data. Voltage output, with a bright and ultra-wide viewing angle OLED display, is an ideal equipment for power consumption testing of new energy electric vehicles.

Main feature:

●It can be used to test the power consumption of new energy vehicles

●Can collect single-channel voltage, current, instantaneous power, electric energy consumption

●High-speed data acquisition

●Support energy output and energy feedback detection

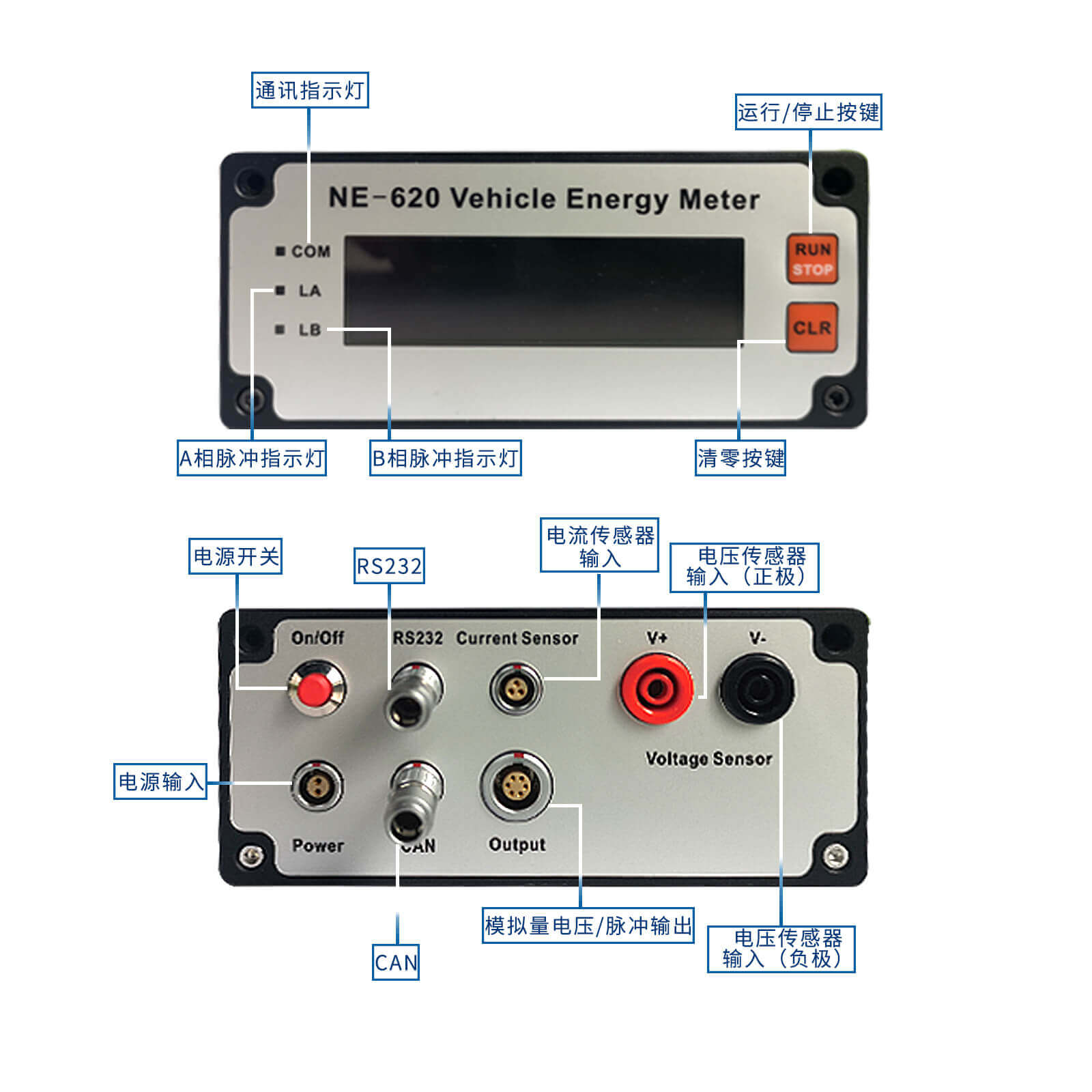

●Abundant communication interfaces: support RS232, CAN bus

●Support analog voltage output

●Power consumption can be set to zero at any time

●Low power consumption, high brightness, high contrast, ultra-wide viewing angle OLED display, visible in sunlight
